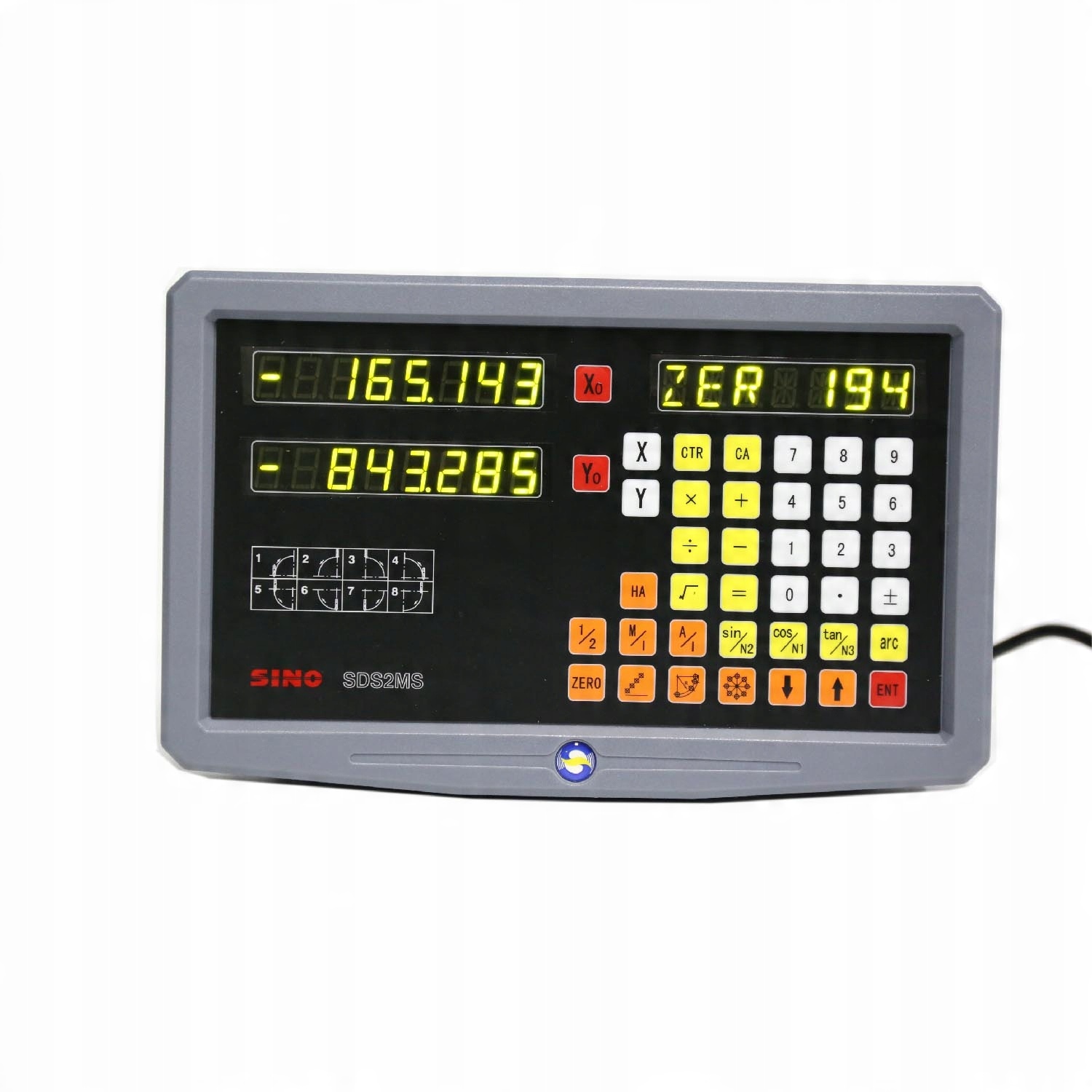

SINO SDS2MS 2 axis digital readout
Package include:
2 Axis Digital readout x 1 piece,
EU Power cord x 1 piece
Manual x 1pc
Install arm x 1pc
Technical Parameters
1.Voltage Range: AC 80V~260V/50HZ~60HZ
2.Power Consumption: 25VA
3.Coordinates: 1/2/3
4.Display: 8 digits display with symbol
5.Frequency number:4X
6.Input Signal: TTL square wave/EIA442A
7.Input Signal frequency: 100KHZ
8.Resolution: 10um ,5um ,2um ,1um , 0.5um,0.1um0.2um
9.Operation Keyboard: Touch keyboard
Digital readout Basic Functions
1:zero clearing
2:reset
3:mm/inch mode
4:ABS/INC
5: 200sets sub datum
6:power off Memory;
7:center of 1/2
8:liner error compensation
9:sleepping mode
10:Clear 200 sets Sdm datum;
11:calculator
12:drilling of circumference
13:drilling of oblique line
14:machining of inclined plane
15:machining of circular arc
16:lathe function(match)
17:Rectangular lumen gradual processing
18:digital filtering (grinder machine )
19.R function
20.Radius/Diameter function (lathe machine )
21.Z+Y sum (lathe machine)
